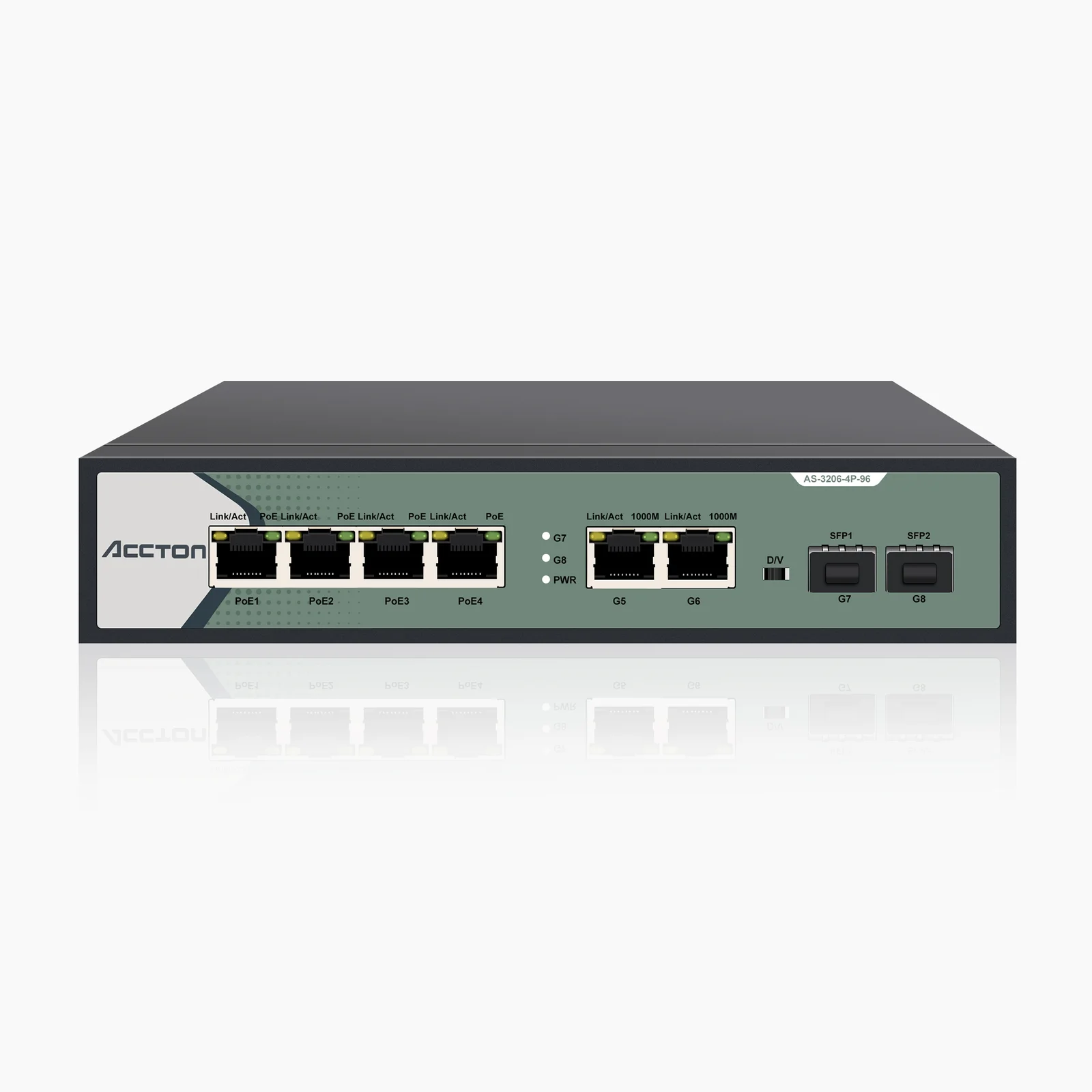

Accton AS-3206-4P-96

The Accton AS-3206-4P-96 is an unmanaged PoE switch with 6 10/100/1000Base-T ports and 2 SFP uplink slots. Ports 1 to 4 supply IEEE 802.3af/at power up to 25.4W each, with a total PoE output of 65W, and only power compliant devices.

A DIP switch changes between normal mode and VLAN mode, in which ports 1 to 4 are isolated from each other and communicate only with the uplink ports. The metal case and built-in power supply give stable long-term operation.

Key Features

• Ports: 6 × 10/100/1000Base-T RJ45 + 2 × 1000Base-X SFP slots
• PoE: ports 1–4, IEEE 802.3af/at, max 25.4W per port, 65W total
• Bandwidth: 16G non-blocking; packet forwarding rate: 11.904Mpps; MAC table 2K; 1Mb buffer; 9216-byte jumbo frames
• Normal / VLAN mode switch (ports 1–4 isolated, communicate with ports 5–8)
• Auto-negotiation 10/100/1000Mbps, half/full duplex, Auto MDI/MDI-X, wire-speed forwarding
• SFP: multi-mode 550m/2km, single-mode 2–100km (850/1310/1550/1490nm modules)
• Optional 6KV common-mode / 4KV differential surge protection and optional AI watchdog (self-healing)
• Power: AC 100–240V, 50–60Hz; consumption below 65W; standby below 3W
• Environment: -20°C to 60°C operating, -40°C to 85°C storage, 5%–95% RH
• Size: 201 × 140 × 44 mm; net weight 0.7kg

Ideal For

Small CCTV systems, shops and homes powering up to 4 PoE cameras or access points with a gigabit or fibre uplink.
