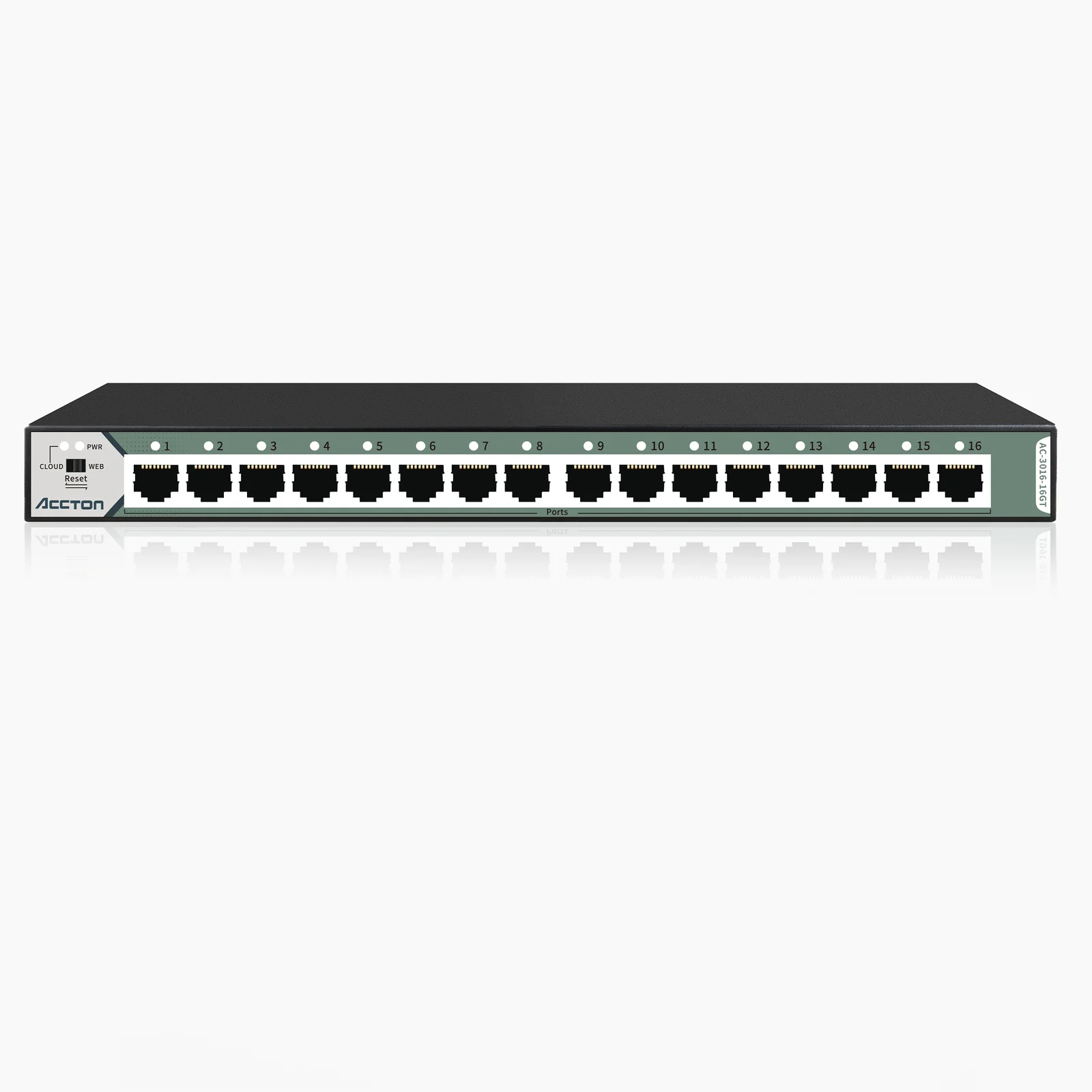

Accton AC-3016-16GT

The Accton AC-3016-16GT is a fully gigabit cloud-managed switch with 16 auto-sensing 10/100/1000M RJ45 ports. It can be monitored and managed remotely from a mobile phone as well as through its local web page, which makes it practical for installers who look after many sites.

A 3-position function switch selects cloud management, default mode (all ports communicate freely) or VLAN mode, where ports 1 and 2 act as LAN ports and ports 3 to 16 are isolated from each other.

Key Features

• Ports: 16 × 10/100/1000Base-T RJ45, all with Auto MDI/MDIX
• Backplane bandwidth: 32G; MAC address table: 8K; packet forwarding rate: 26.784Mpps
• 3-position function switch: CMG (cloud), default, VLAN
• 802.1Q VLAN and MTU-VLAN support
• Storm suppression for broadcast/multicast, network loop detection
• DHCP Snooping to block illegal DHCP servers
• Port management: rate limiting, duplex setting, port mirroring, port MAC binding
• QoS with 16 port queues, 802.1P and DSCP priority, SP/WRR/SP+WRR scheduling
• 4Mbit packet buffer, 15KB jumbo frames, IEEE 802.3x flow control
• Remote management via mobile mini-program/APP, local web and PC client management
• Over-current, overload and short-circuit protection
• Power: 12V/1A external adapter
• Environment: 0°C to 40°C operating, -40°C to 70°C storage, 10%–90% RH non-condensing

Ideal For

Offices, shops, schools and CCTV or network installations that need 16 managed gigabit ports with remote visibility and simple VLAN isolation.
