Accton ACS4224-24GT2GT

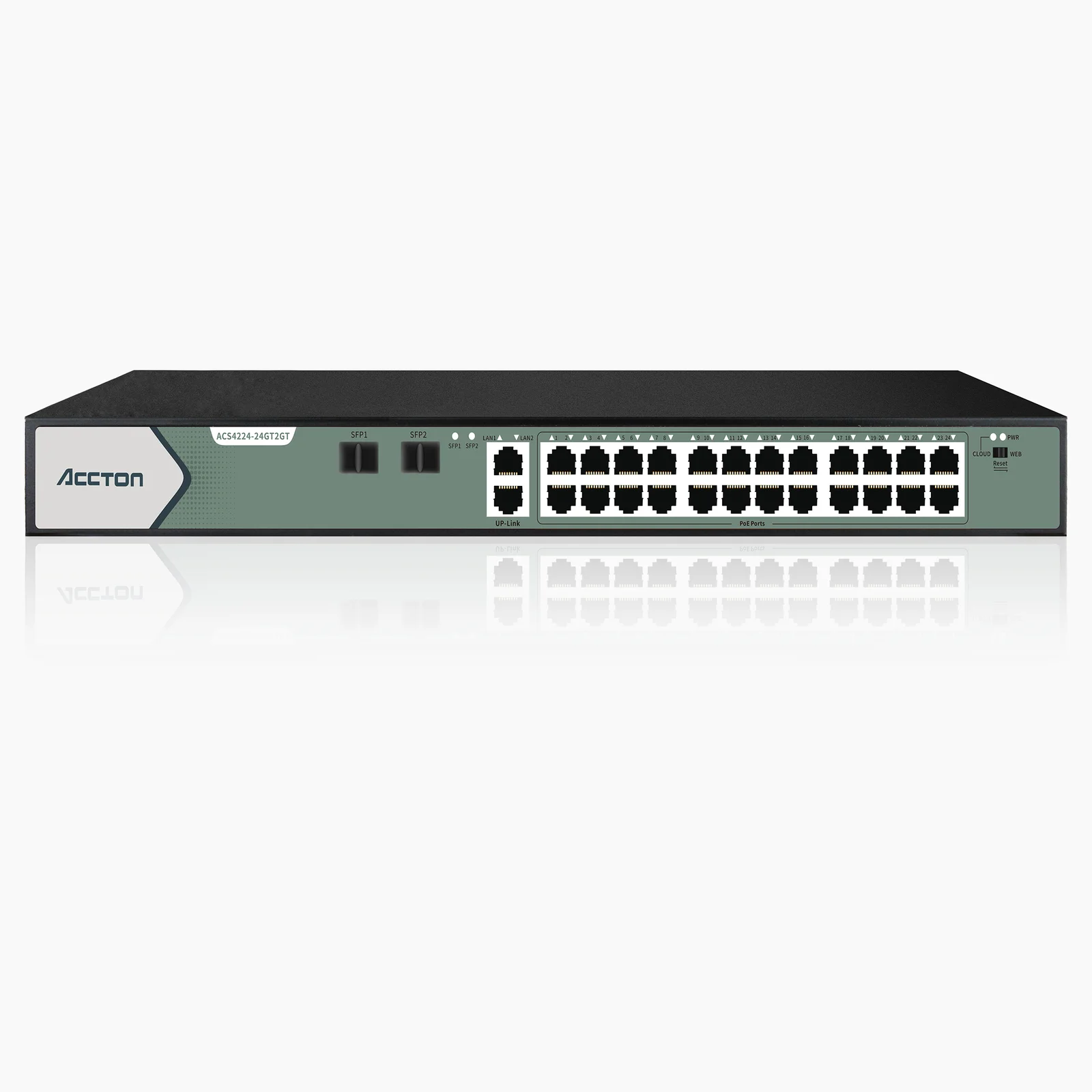

The Accton ACS4224-24GT2GT is a 24-port cloud-managed gigabit PoE switch with 2 upstream gigabit RJ45 ports and 2 gigabit SFP ports. A 360W built-in power supply delivers up to 30W per port to IEEE 802.3af/at devices.

It can be managed through the “Amitres IOT” app or the local web page, supports STP/RSTP loop prevention and has an all-metal casing for rack or desk installation.

Key Features

• Ports: 24 × 10/100/1000M PoE RJ45, 2 × 10/100/1000M uplink RJ45, 2 × 1000M SFP
• PoE: IEEE 802.3af/at, up to 30W per port, 360W total; compatible with certified non-standard PD
• Backplane bandwidth: 56G; MAC address table: 8K; forwarding rate: 41.664Mpps
• Cloud app “Amitres IOT”: port restart, PoE switch, speed limit, VLAN, firmware upgrade
• Gear switch: WEB + CLOUD management
• 802.1Q VLAN, MTU/Port VLAN, STP (802.1d) and RSTP (802.1w), DHCP Snooping, port mirroring, QoS
• Surge protection: 4KV differential and common mode
• Power: AC 100–250V, 360W; PoE line sequence 1/2, 3/6, 4/5, 7/8
• Environment: 0°C to 40°C operating, -40°C to 70°C storage
• Weight: approx. 2.5kg (bare unit)

Ideal For

Larger CCTV systems, offices, hotels and buildings that need 24 PoE ports with SFP uplinks and remote management.
