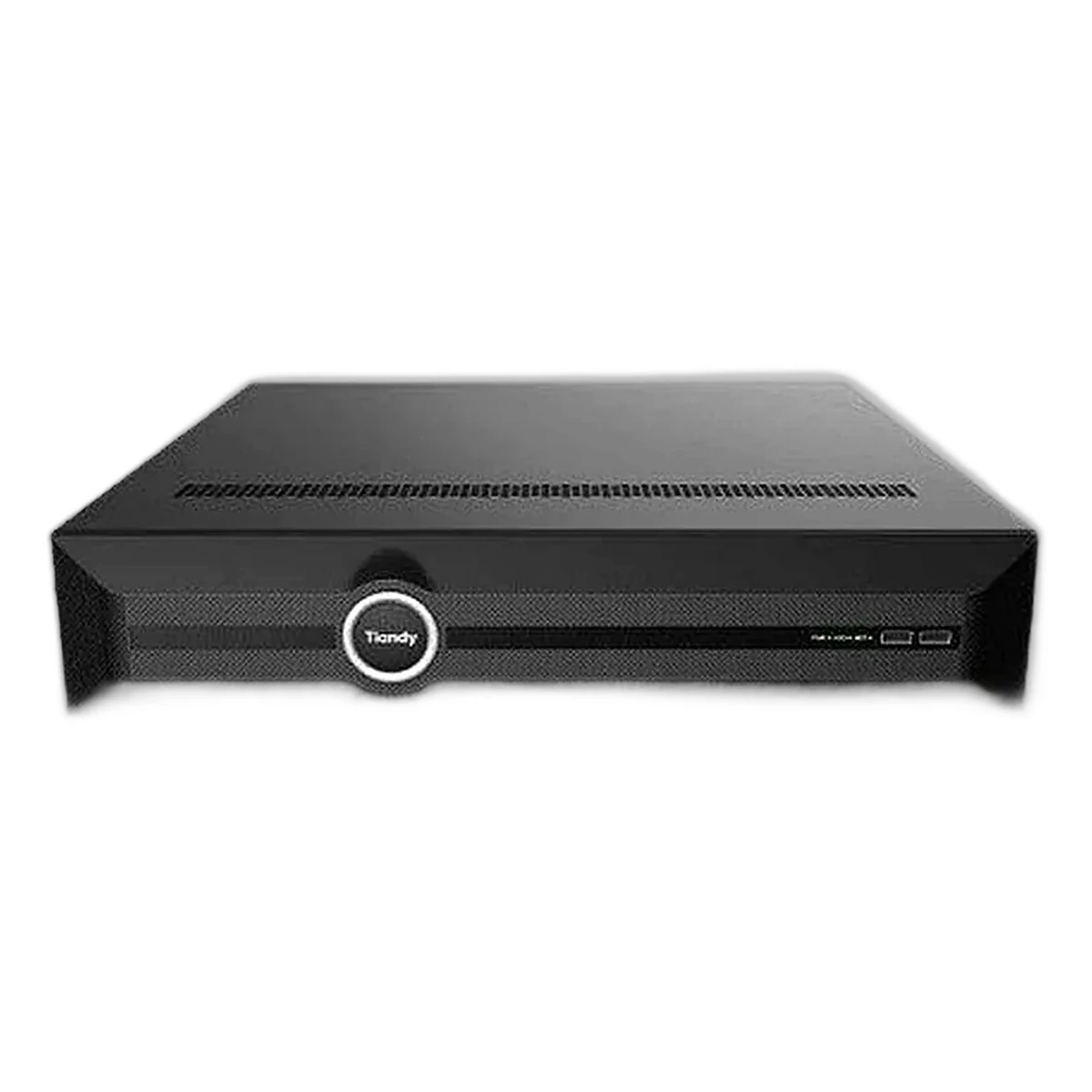

Tiandy TC-R3880 IBN V4.0 80-Channel 8-Bay 4K NVR Network Video Recorder – Supports Up to 16MP Cameras

Tiandy TC-R3880 I/B/N/V4.0 80-Channel 4K NVR

Power Your Large-Scale Surveillance with Tiandy’s Ultimate Recording Solution

The Tiandy TC-R3880 I/B/N/V4.0 is a high-performance, 80-channel professional Network Video Recorder (NVR) engineered for enterprise, government, and large-scale commercial security systems. As part of Tiandy’s Pro Series, it’s built to handle the most demanding video surveillance requirements, offering unmatched recording capacity, intelligent AI capabilities, and unwavering reliability.

Why Choose the TC-R3880 for Your Projects?

Massive Capacity & Enterprise-Grade Reliability: With 8 hot-swappable SATA HDD bays supporting up to 18TB per drive (expandable to 24TB on some models), you can achieve immense local storage. RAID (0, 1, 5, 6, 10) support ensures your critical footage is always protected and recoverable.

Uncompromised Performance for High-Volume Deployments: The device supports up to 80 IP cameras simultaneously with a massive incoming bandwidth of 640Mbps and outgoing bandwidth of 320Mbps. This ensures smooth, real-time recording and playback without frame drops, even with high-resolution streams.

Crystal-Clear 4K Live View & Playback: Dual independent HDMI outputs deliver stunning 4K (3840×2160) resolution. This allows you to monitor ultra-high-definition footage on two separate displays, perfect for modern security command centers.

Future-Proof AI Analytics: Go beyond simple recording with powerful built-in video analytics. The TC-R3880 supports perimeter intrusion detection, line-crossing alerts, facial recognition, vehicle detection, and abandoned/missing object detection. These tools transform your security system into a proactive, intelligent solution.

Smart Storage & Bandwidth Efficiency: Utilizing advanced S+265, H.265, and H.264 compression technologies, the NVR can reduce storage space and bandwidth consumption by up to 75% compared to older codecs, drastically cutting long-term costs.

Flexible & Open Platform: Fully compatible with the ONVIF (Profile S, G, T) and RTSP protocols, the TC-R3880 works seamlessly with a vast array of third-party IP cameras, giving you the freedom to choose the best components for your project.

Key Specifications at a Glance:

Video Channels: Up to 80 IP Camera Inputs

Incoming/Outgoing Bandwidth: 640Mbps / 320Mbps

HDD Bays: 8 x SATA III (Up to 18TB per bay)

Max. Recording Resolution: Up to 16MP (16 Megapixel)

Video Output: 2x HDMI (up to 4K), 2x VGA (up to 1080P)

Audio: 1x Audio In, 1x Audio Out

Alarm: 16x Alarm Inputs, 4x Relay Outputs

Network: 2x Gigabit RJ-45 Ports (10/100/1000 Mbps)

USB Ports: 2x USB 2.0, 1x USB 3.0

RAID Support: 0, 1, 5, 6, 10

Dimensions (WxDxH): 440mm × 455mm × 94mm

Power Supply: 100-240V AC

Package Contents:

Tiandy TC-R3880 I/B/N/V4.0 NVR Main Unit

8x SATA Hard Disk Data Cables

Mouse

European Standard Power Cord

Rack-Mount Ear Plates (for server rack installation)

Screw Pack

Upgrade your security infrastructure today. The Tiandy TC-R3880 delivers the performance, reliability, and intelligence required for tomorrow’s challenges.
