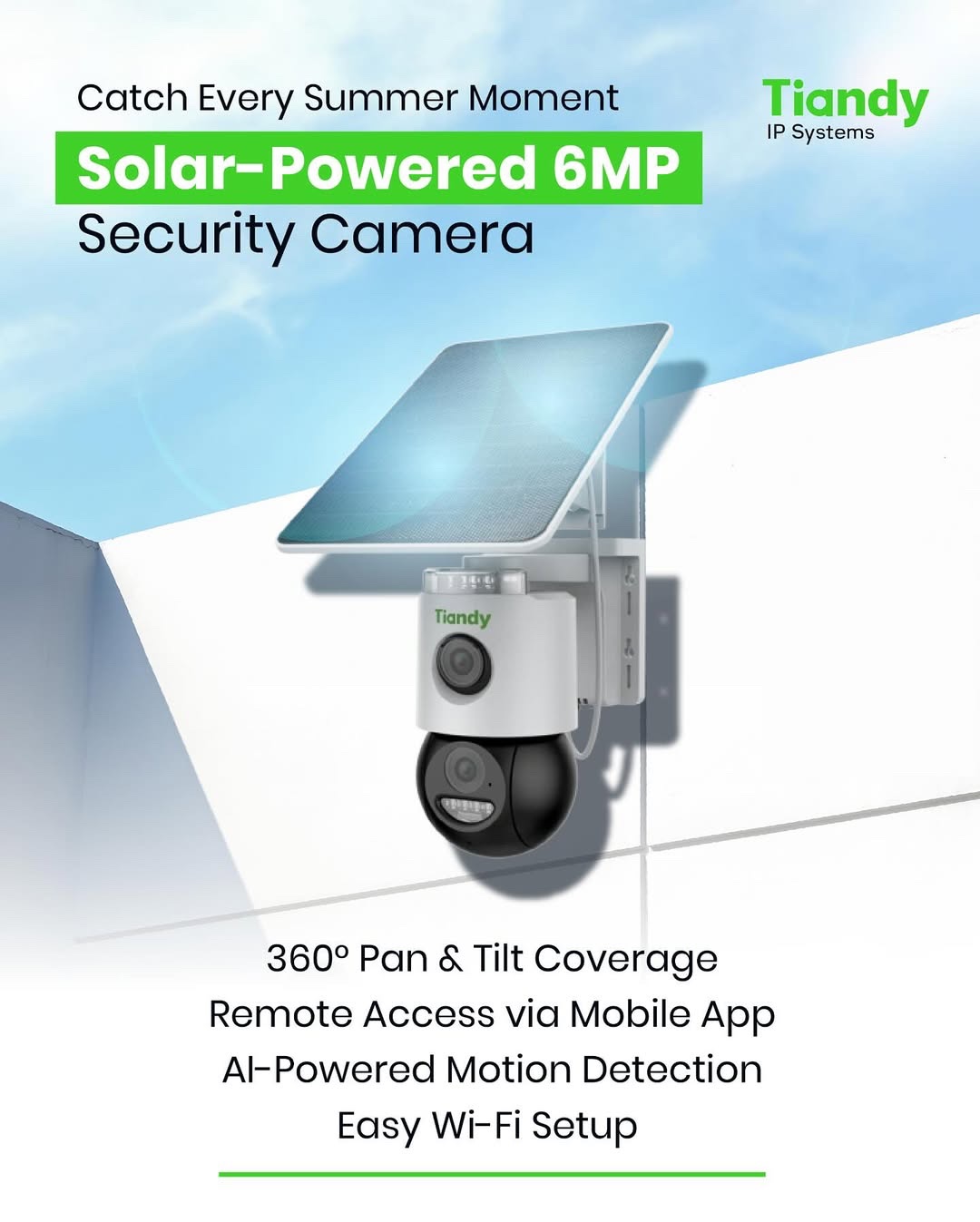

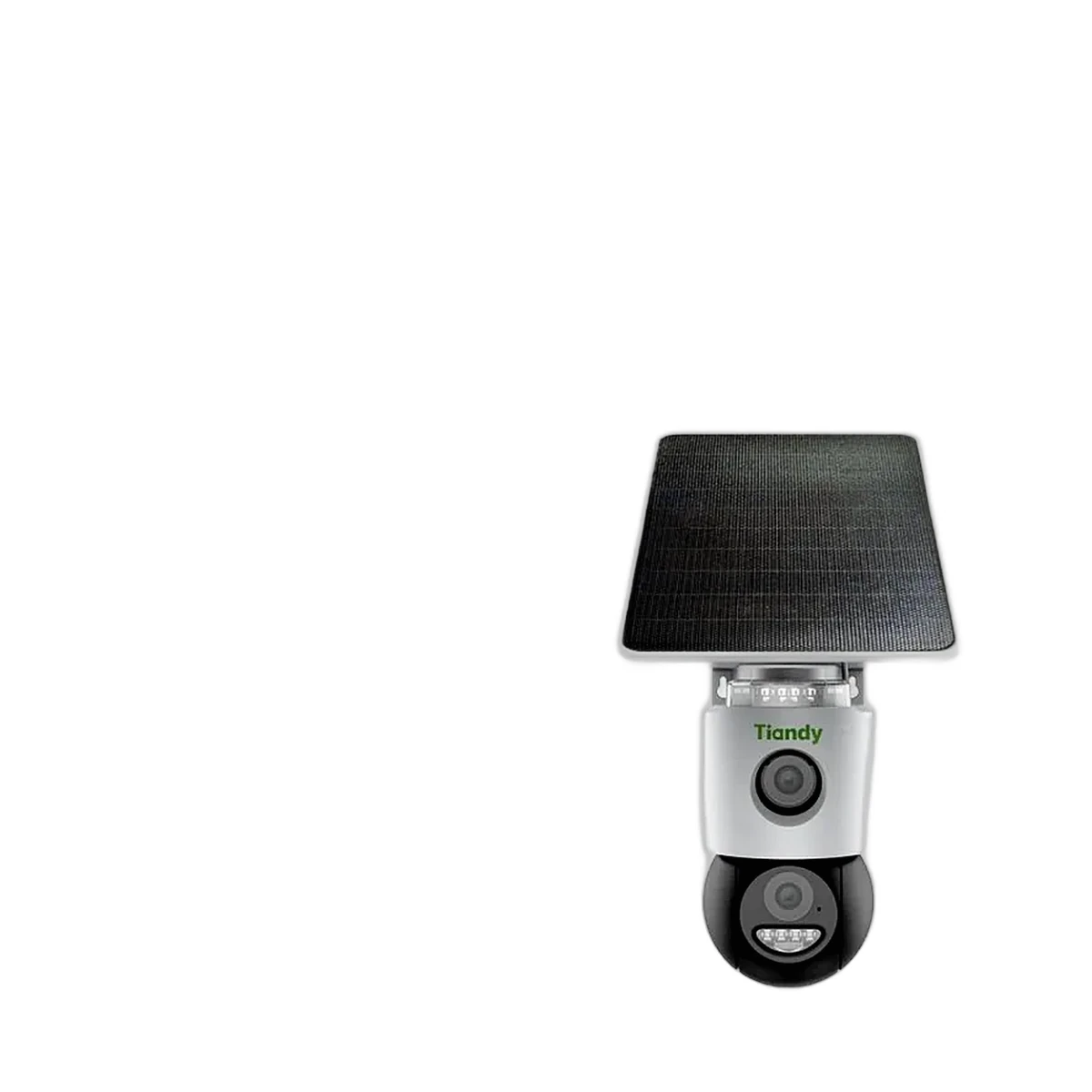

Tiandy TC-H363U W/4G/4mm — 6MP Solar 4G PT Camera (Fixed Color Maker)
The Tiandy TC-H363U is a fully solar-powered, 4G-connected pan-tilt camera built for sites with no power or internet cabling available — remote gates, farms, construction sites, boundary walls, or any location where running cables isn’t practical. It pairs a wide panoramic view with a separate detail camera, so you get both overall coverage and a closer look in one unit.
Key Features
- Fixed Color Maker technology: keeps footage in full color at night via built-in white-light LEDs (20m range), not just black-and-white IR
- Dual-lens panorama + detail view: 3MP panoramic overview and 3MP detail camera together, each at 2304×1296
- 4G LTE connectivity: Nano SIM card slot, works over 4G FDD/TDD — no WiFi or ethernet needed
- Solar-powered: includes solar panel and a 10,400mAh battery, built for continuous off-grid operation
- Smart human/vehicle detection with auto-tracking and red-blue alarm light + sound deterrent
- Two-way audio: built-in mic and speaker for live communication
- Local storage: supports microSD/SDHC/SDXC cards up to 256GB
- IP65 weatherproof housing, rated for outdoor use in temperatures from -20°C to 50°C
Full Specifications
| Image Sensor | Panorama: 1/2.9″ CMOS · Detail: 1/2.9″ CMOS |
| Min. Illumination | Color: 0.0004Lux (F1.0, AGC ON) |
| Lens | Fixed focal, 4mm, M12 mount, F1.0 aperture |
| Field of View | 79.8°(H); 44.7°(V); 90.8°(D) |
| DORI Distance | Detect 57.14m / Observe 22.68m / Recognize 11.43m / Identify 5.71m |
| Pan & Tilt | Pan 30°/s, Tilt 25°/s, 64 presets |
| IR / White Light | IR range 30m (850nm) · White light range 20m |
| Video Compression | S+265 / H.265 |
| Max Resolution | 3MP, 2304×1296 @ 20fps (panorama and detail) |
| Storage | microSD/SDHC/SDXC, up to 256GB |
| Connectivity | Nano SIM, 4G LTE FDD/TDD |
| Power | DC5V ±25%, Max 10W · 10,400mAh battery · Solar panel included |
| Protection | IP65, Surge 500V, ESD 6000V |
| Operating Temperature | -20°C to 50°C |
| Dimensions | 183(L) × 105(W) × 202(H) mm |
| Gross Weight | 1.66kg |
