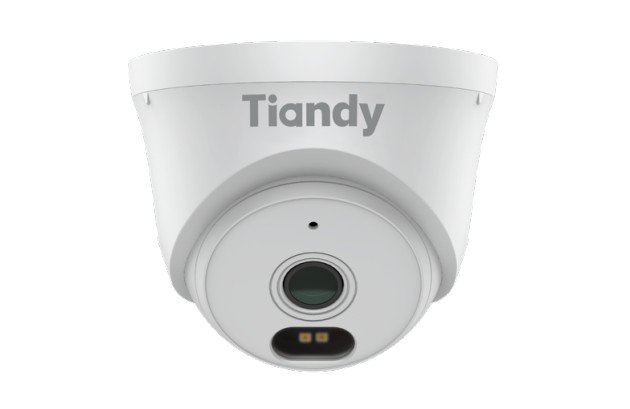

Tiandy TC-C340N 1ANA

The Tiandy TC-C340N 1ANA-2.8MM is a compact 4MP turret camera from the AK series. The bright F1.6 lens and 2.8mm wide angle (91.5° horizontal) give a clear, wide picture, with infrared up to 30m and white LEDs up to 15m for night coverage.

A built-in microphone records sound and the camera needs only one PoE cable. The ball-type mount adjusts 340° pan, 75° tilt and 360° rotation for easy aiming.

Key Features

• Resolution: 4MP, 2560×1440 @ 30fps
• Lens: 2.8mm fixed focal, F1.6, 91.5° horizontal field of view
• DORI Distance: Detect 56m / Observe 22.2m / Recognize 11.2m / Identify 5.6m
• Night Vision: 2 IR LEDs up to 30m (850nm) plus 2 white LEDs up to 15m
• Low Light: Color 0.02Lux (F1.6), B/W 0Lux with IR; S/N >52dB
• Compression: S+265 / H.265 / H.264, bit rate 32k–6Mbps
• Audio: built-in mic
• Image: DWDR, BLC, HLC, 3D DNR, Defog, Smart IR, 4 privacy mask areas
• Alarm: motion detection
• Mount: 340° pan, 75° tilt, 360° rotation
• Power: PoE IEEE 802.3af, max 2.5W
• Operating Range: -30°C to 60°C, ≤95% RH; surge 4000V, ESD 6000V
• Compatibility: ONVIF (Profile S/T), SDK, CGI, Milestone, Easy7 VMS
• Size: 94 × 94 × 78 mm, 0.17kg

Ideal For

Shops, offices, corridors, reception areas and covered entrances needing a discreet, wide-angle 4MP camera with night vision.
